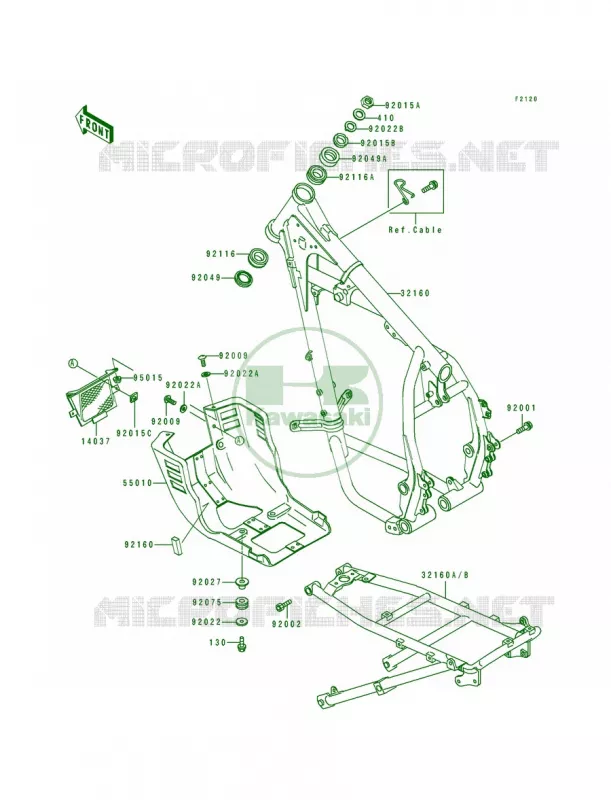

FRAME FOR KAWASAKI TENGAI

Frame Fitting

130

BOLT-FLANGED 6X25

130J0625 130J0625

Not available

410

W-PLAIN-S

410F1800 410F1800

Not available

14037

SCREEN ENGINE GUARD BLACK

14037-111-76Z 1403711176Z

Not available

32160

FRAME-COMP FR GRAY

32160-102-8EC 321601028EC

Not available

32160A

FRAME-COMP RR GRAY

32160-102-9EC 321601029EC

Not available

55010

GUARD-ASSY ENGINE P.G.GRAY

55010-105-2T8 550101052T8

Not available

92001

BOLT FLANGED 8X28 BLACK

92001-1508 920011508

Not available

92002

BOLT SOCKET 8X25

92002-1442 920021442

Not available

92009

SCREW 5X14 BLACK

92009-1383 920091383

Not available

92015

NUT FLANGED 5MM

92015-1328 920151328

Not available

92015A

NUT 18MM

92015-1404 920151404

Not available

92015B

NUT 25MM T=12

92015-1546 920151546

Not available

92015C

NUT 5MM

92015-1710 920151710

Not available

92022

WASHER 7X24X1.6

92022-1160 920221160

Not available

92022A

WASHER NYLON 5.3X11.5X1.5

92022-1521 920221521

Not available

92022B

WASHER CLAW 18.5X30X2.3

92022-1555 920221555

Not available

92027

COLLAR L=13.1 BLACK

92027-1450 920271450

Not available

92049

SEAL-OIL XMHE36X52X4J

92049-1162 920491162

Not available

92049A

SEAL-OIL STEERING STEM

92049-1214 920491214

Not available

92075

DAMPER

92075-1690 920751690

Not available

92116

BEARING-ROLLER HR32028XJ

92116-1009 921161009

Not available

92116A

BEARING-ROLLER HICAP 32005JR

92116-1052 921161052

Not available

92160

DAMPER

92160-1183 921601183

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Frame of your Kawasaki of 1991. Let us know if you have any questions.
