RADIATOR FOR KAWASAKI KLR650

Rear Caliper

130

BOLT-FLANGED

130J0612 130J0612

Not available

130A

BOLT-FLANGED

130J0620 130J0620

Not available

130B

BOLT-FLANGED 6X25

130J0625 130J0625

Not available

11009

GASKET RESERVOIR TANK CAP

11009-1145 110091145

0,97 €

Unit Price Excl Tax

11012

CAP

11012-1084 110121084

Not available

14037

SCREEN

14037-1088 140371088

Not available

27002

RELAY-ASSY

27002-1051 270021051

Not available

27010

SWITCH FAN

27010-1167 270101167

Not available

39060

RADIATOR

39060-1074 390601074

Not available

39062

HOSE-COOLING

39062-1125 390621125

Not available

39062A

HOSE-COOLING HEAD-RADIATOR

39062-1217 390621217

Not available

39062B

HOSE-COOLING RESERVOIR

39062-1220 390621220

Not available

39062C

HOSE-COOLING RADIATOR-PUMP

39062-1243 390621243

Not available

43078

RESERVOIR

43078-1083 430781083

Not available

49085

CAP-ASSY-PRESSURE

49085-1003 490851003

Not available

49089N

SHROUD-ENGINE LH P.WHITE

49089-512-36F 4908951236F

Not available

49089O

SHROUD-ENGINE RH P.WHITE

49089-512-46F 4908951246F

Not available

59502

FAN-ASSY

59502-1082 595021082

Not available

92002

BOLT 6X16

92002-1461 920021461

Not available

92009

SCREW 5X14 BLACK

92009-1383 920091383

Not available

92009A

SCREW 6X12

92009-1480 920091480

Not available

92015

NUT

92015-1487 920151487

Not available

92015A

NUT 6MM

92015-1758 920151758

Not available

92022

WASHER NYLON 5.3X11.5X1.5

92022-1521 920221521

Not available

92027

COLLAR

92027-1183 920271183

Not available

92037

CLAMP TUBE

92037147 92037147

Not available

92071

GROMMET

92071056 92071056

Not available

92075

DAMPER

92075-1352 920751352

Not available

92170

CLAMP COOLING HOSE

92170-1033 921701033

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

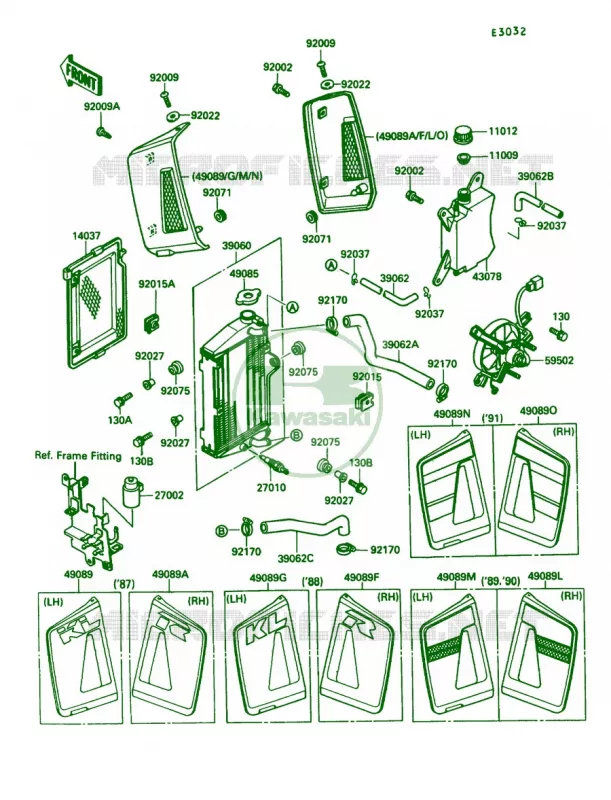

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Radiator of your Kawasaki of 1991. Let us know if you have any questions.
