TRANSMISSION

GEAR CHANGE DRUM - SHIFT FORKS FOR KAWASAKI GPX600R

SHIFT

Item numbers

221

SCREW-CSK-CROS, 6X20

221AA-0620 221AA0620

Not available

221

SCREW-CSK-CROS, 6X20

221B0620 221B0620

Not available

480

CIRCLIP-TYPE-C, 30MM

480J3000 480J3000

Not available

482

CIRCLIP-TYPE-E, 10MM

482J0100 482J0100

0,30 €

Unit Price Excl Tax

550

PIN-COTTER, 3.0X20

550AA-3020 550AA3020

Not available

550

PIN-COTTER, 3.0X20

550D3020 550D3020

Not available

610

ROLLER, 4X6

610A0406 610A0406

Not available

11009

GASKET, 10.5X16X1, DRAIN PLUG

92065058 92065058

Not available

13091

HOLDER, CHANGE DRUM PIN

13091-1104 130911104

Not available

13140

FORK-SHIFT, DRIVE

13140-1016 131401016

Not available

13140A

FORK-SHIFT, OUTPUT

13140-1062 131401062

Not available

13145

CAM-CHANGE DRUM

13145-1058 131451058

Not available

13151

SWITCH-COMP, NEUTRAL

13151-1007 131511007

Not available

13151

SWITCH-COMP, NEUTRAL

13151-1080 131511080

Not available

13239

DRUM-ASSY-CHANGE

13239-1119 132391119

Not available

13239

DRUM-ASSY-CHANGE

13239-1196 132391196

Not available

49047

ROD-SHIFT

49047-1069 490471069

Not available

92033

RING-SNAP, 37MM

92033035 92033035

Not available

92043

PIN, DOWEL, 4X15.8

92042014 92042014

Not available

92043A

PIN, DOWEL, 8X18

92042021 92042021

Not available

92043B

PIN, DOWEL, 4X13.8

92042030 92042030

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

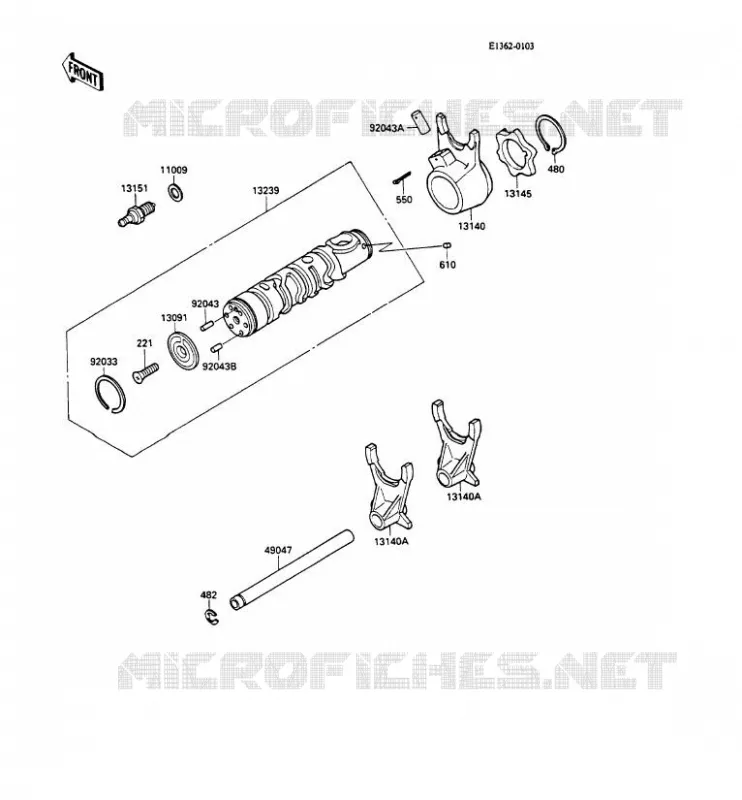

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the GEAR CHANGE DRUM - SHIFT FORKS of your Kawasaki of 1989. Let us know if you have any questions.

Select your Kawasaki model

Kawasaki GPX600R

Displacement: 600 cc
Year: 1989
Model code ZX600-C2
Color: EBONY / METALLIC BRONZE-GUNS ............
Chassis number: ZX600C- 11501 19000
Engine number: ZX600AE 69501 999999
