Model

Year

Finish line

Parts catalogue

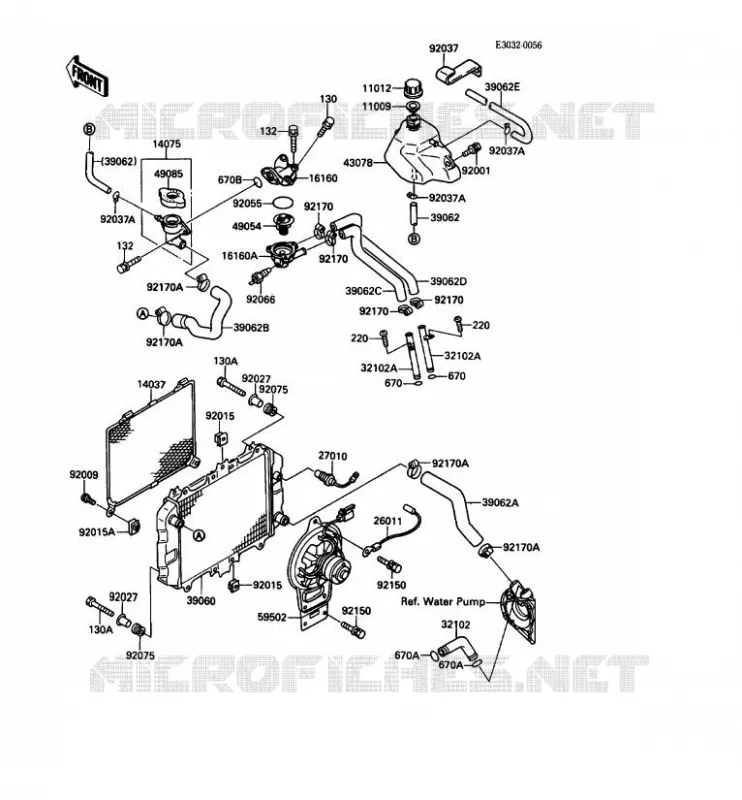

Parts diagram

WATER PUMP

RADIATOR FOR KAWASAKI GPZ500S

CHASSIS

Item numbers

130

BOLT-FLANGED

130B0614 130B0614

Not available

130

BOLT-FLANGED, 6X14

130BA-0614 130BA0614

0,45 €

Unit Price Excl Tax

130A

BOLT-FLANGED

130BB-0625 130BB0625

Not available

130A

BOLT-FLANGED

130J0625 130J0625

Not available

132

BOLT-FLANGED-SMALL, 6X20

132BA-0620 132BA0620

Not available

132

BOLT-FLANGED-SMALL

132G0620 132G0620

Not available

220

SCREW-PAN-CROSS, 6X12

220AA-0612 220AA0612

Not available

220

SCREW-PAN-CROS, 6X12

220B0612 220B0612

Not available

670

O RING, 14MM

670B2014 670B2014

Not available

670A

O RING, 18MM

670B2018 670B2018

Not available

670B

O RING, 20MM

670B2020 670B2020

Not available

11009

GASKET, RESERVOIR TANK CAP

11009-1145 110091145

0,97 €

Unit Price Excl Tax

11012

CAP

11012-1084 110121084

Not available

14037

SCREEN

14037-1089 140371089

Not available

14037

SCREEN

14037-1143 140371143

Not available

14075

CAP-ASSY, RADIATOR

14075-1065 140751065

Not available

14075

CAP-ASSY, RADIATOR

14075-1085 140751085

Not available

16160

BODY, THERMOSTAT, UPP

16160-1126 161601126

Not available

16160

BODY, THERMOSTAT, UPP

16160-5022 161605022

Not available

16160A

BODY, THERMOSTAT, LWR

16160-1138 161601138

Not available

26011

WIRE-LEAD

26011-1361 260111361

Not available

27010

SWITCH, FAN

27010-1180 270101180

Not available

32102

PIPE, PUMP-CYLINDER

32102-1405 321021405

Not available

32102A

PIPE

32102-1473 321021473

Not available

39060

RADIATOR

39060-1075 390601075

Not available

39062

HOSE-COOLING, L=447

39062-1195 390621195

Not available

39062

HOSE-COOLING, RESERVOIR

39062-1220 390621220

Not available

39062A

HOSE-COOLING, RADIATOR-PUMP

39062-1222 390621222

Not available

39062B

HOSE-COOLING, CAP-RADIATOR

39062-1223 390621223

Not available

39062C

HOSE-COOLING, THERMO-HEAD, LH

39062-1224 390621224

Not available

39062D

HOSE-COOLING, THERMO-HEAD, RH

39062-1225 390621225

Not available

39062E

HOSE-COOLING

39062-1257 390621257

Not available

43078

RESERVOIR

43078-1084 430781084

Not available

49054

THERMOSTAT

49054-1059 490541059

Not available

49085

CAP-ASSY-PRESSURE

49085-1005 490851005

Not available

49085

CAP-ASSY-PRESSURE

49085-1066 490851066

Not available

59502

FAN-ASSY

59502-0018 595020018

Not available

59502

FAN-ASSY

59502-1070 595021070

Not available

92001

BOLT, W/WASHER, 6X12

92001-1516 920011516

Not available

92009

SCREW, 6X12

92009-1480 920091480

Not available

92015

NUT

92015-1487 920151487

Not available

92015A

NUT, 6MM

92015-1582 920151582

Not available

92015A

NUT, 6MM

92015-1758 920151758

Not available

92027

COLLAR, FLANGED, L=12.1, BLACK

92027-1651 920271651

Not available

92037

CLAMP, HARNESS

92037-1316 920371316

Not available

92037

CLAMP

92171-0652 921710652

Not available

92037A

CLAMP, TUBE

92037147 92037147

Not available

92055

RING-O, 44.7X2.4

92055-1279 920551279

Not available

92066

PLUG, SENSOR, WATER

92066-1118 920661118

Not available

92075

DAMPER

92075277 92075277

Not available

92150

BOLT, 6X12

92150-1186 921501186

Not available

92170

CLAMP, COOLING HOSE

92170-1032 921701032

Not available

92170A

CLAMP, COOLING HOSE

92170-1033 921701033

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the RADIATOR of your Kawasaki of 1987. Let us know if you have any questions.
