Front Brake

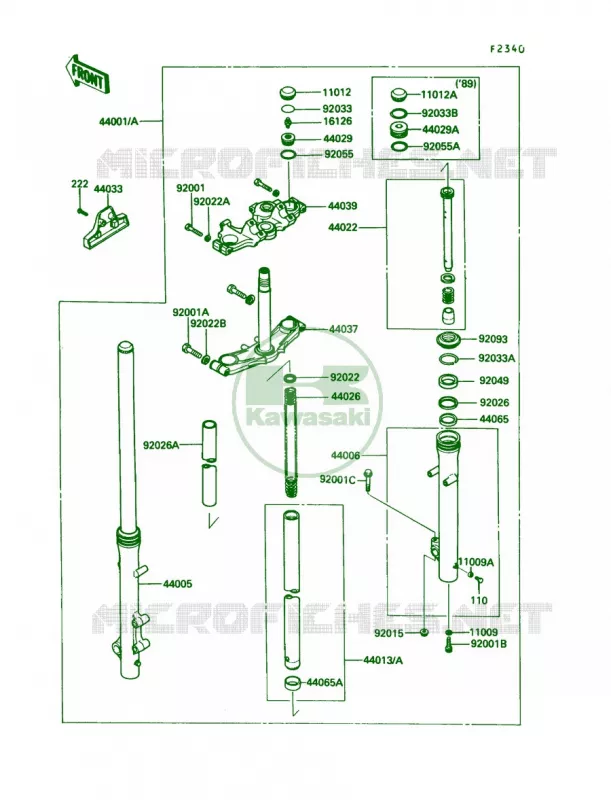

FRONT FORK FOR KAWASAKI 454 LTD

Front Master Cylinder

110

BOLT 6X8

110B0608 110B0608

Not available

222

SCREW-CSK-RD-CROS

222C0520 222C0520

Not available

11009

GASKET FORK CYLINDER BOLT

44045051 44045051

Not available

11009A

GASKET DRAIN PLUG

44045052 44045052

Not available

11012

CAP FORK TOP

11012-1467 110121467

Not available

16126

VALVE AIR

16126-1105 161261105

Not available

44001

FORK-FRONT

44001-1575 440011575

Not available

44005

PIPE-LEFT FORK OUTER

44005-1230 440051230

Not available

44006

PIPE-RIGHT FORK OUTER

44006-1230 440061230

Not available

44013

PIPE-FORK INNER

44013-1228 440131228

Not available

44022

CYLINDER-FORK

44022-1178 440221178

Not available

44026

SPRING-FRONT FORK K=0.29

44026-1297 440261297

Not available

44029

SEAT-FORK SPRING

44029-1019 440291019

Not available

44033

COVER-FORK

44033-1166 440331166

Not available

44037

HOLDER-FORK UNDER

44037-1176 440371176

Not available

44039

HOLDER-FORK UPPER

44039-1118 440391118

Not available

44065

BUSHING-FRONT FORK

44065-1068 440651068

Not available

44065A

BUSHING-FRONT FORK INNER PIPE

44065-1069 440651069

Not available

92001

BOLT 8X40

92001-1063 920011063

Not available

92001A

BOLT 10X40

92001-1454 920011454

Not available

92001B

BOLT FORK CYLINDER

92001-1464 920011464

Not available

92001C

BOLT FLANGED 8X50

92001-1486 920011486

Not available

92015

NUT FLANGED 8MM

92015-1055 920151055

Not available

92022

WASHER

92022-1702 920221702

Not available

92022A

WASHER SPRING 8MM

92022-1703 920221703

Not available

92022B

WASHER SPRING 10MM

92022-1704 920221704

Not available

92026

SPACER FORK

92026-1038 920261038

Not available

92026A

SPACER FORK SPRING

92026-1252 920261252

Not available

92033

RING-SNAP

92033-1023 920331023

Not available

92033A

RING-SNAP FORK

92033-1193 920331193

Not available

92049

SEAL-OIL FORK

92049-1226 920491226

Not available

92055

RING-O

92055-1034 920551034

Not available

92093

SEAL FORK

92093-1196 920931196

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Front Fork of your Kawasaki of 1987. Let us know if you have any questions.
