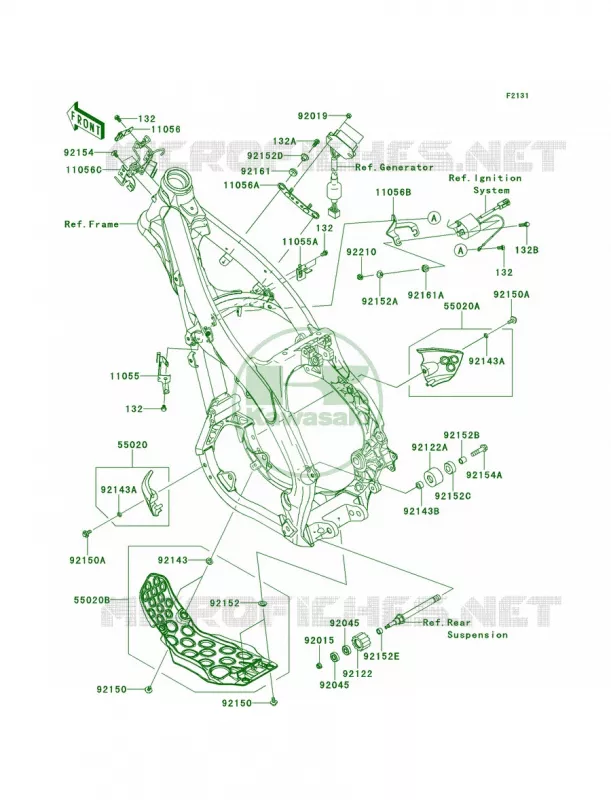

FRAME FITTINGS FOR KAWASAKI KX250F

Front Brake

132

BOLT-FLANGED-SMALL 6X10

132BA-0610 132BA0610

Not available

132A

BOLT-FLANGED-SMALL 6X14

132BA-0614 132BA0614

Not available

132B

BOLT-FLANGED-SMALL 6X25

132BA-0625 132BA0625

Not available

11055

BRACKET COUPLER

11055-1540 110551540

Not available

11055A

BRACKET

11055-1541 110551541

Not available

11056

BRACKET DIAG CONNECTOR

11056-0070 110560070

Not available

11056A

BRACKET REGULATOR

11056-0624 110560624

Not available

11056B

BRACKET IG. COIL

11056-0961 110560961

Not available

11056C

BRACKET ECU

11056-1657 110561657

Not available

55020

GUARD ENGINE SIDE LH EBONY

55020-043-56C 5502004356C

Not available

55020A

GUARD ENGINE SIDE RH EBONY

55020-043-66C 5502004366C

Not available

55020B

GUARD ENGINE LWR EBONY

55020-044-36C 5502004436C

Not available

92015

NUT LOCK FLANGED 6MM

92015-1339 920151339

Not available

92019

NUT LOCK 6MM

92019008 92019008

Not available

92045

BEARING-BALL 608LLU2A

92045-0060 920450060

Not available

92122

ROLLER CHAIN GUIDE

92122-0016 921220016

Not available

92122A

ROLLER CHAIN

92122-0042 921220042

Not available

92143

COLLAR

92143-1196 921431196

Not available

92143A

COLLAR

92143-1307 921431307

Not available

92143B

COLLAR 8.5X15X9

92143-1642 921431642

Not available

92150

BOLT 6X12

92150-1435 921501435

Not available

92150A

BOLT FLANGED 6X16

92150-1506 921501506

Not available

92152

COLLAR

92152-0052 921520052

Not available

92152A

COLLAR

92152-0620 921520620

Not available

92152B

COLLAR 8.5X12.5X12.5

92152-0944 921520944

Not available

92152C

COLLAR 12.7X27.2X12

92152-0945 921520945

Not available

92152D

COLLAR

92152-1449 921521449

Not available

92152E

COLLAR 8.1X12.5X7.5

92152-1624 921521624

Not available

92154

BOLT SOCKET 6X10

92154-0774 921540774

Not available

92154A

BOLT FLANGED 8X35

92154-0913 921540913

Not available

92161

DAMPER

92161-0266 921610266

Not available

92161A

DAMPER 8.5X15.5X5.5

92161-0878 921610878

Not available

92210

NUT FLANGED 6MM

92210-0630 922100630

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Frame Fittings of your Kawasaki of 2013. Let us know if you have any questions.
