Ignition System

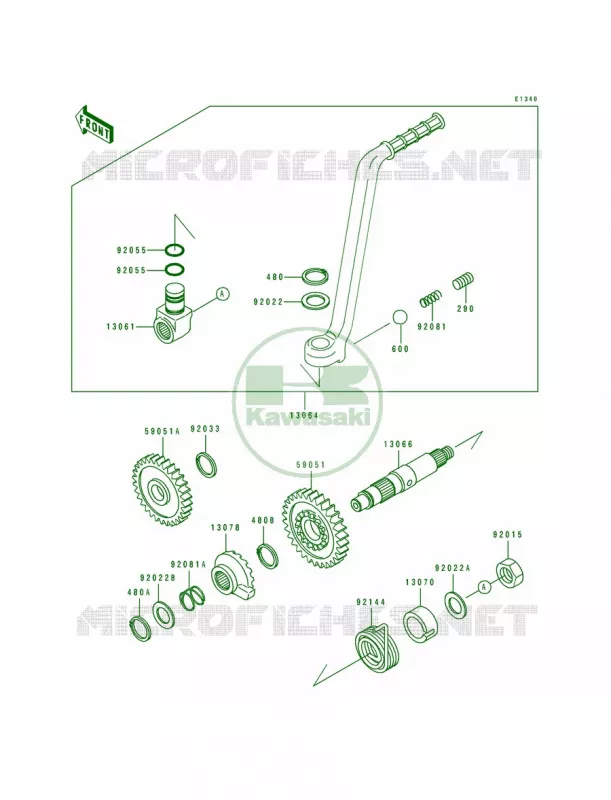

KICKSTARTER MECHANISM FOR KAWASAKI KDX250

Labels

290

SCREW-SET-SOCKET 8X8

290Q0808 290Q0808

Not available

480

CIRCLIP-TYPE-C 15MM

480J1500 480J1500

Not available

480A

CIRCLIP-TYPE-C 16MM

480J1600 480J1600

Not available

480B

CIRCLIP-TYPE-C 18MM

480J1800 480J1800

Not available

600

BALL-STEEL 14"

600A0800 600A0800

Not available

13061

BOSS KICK PEDAL

13061-1336 130611336

Not available

13064

LEVER-ASSY-KICK PEDAL

13064-1153 130641153

Not available

13066

SHAFT-KICK

13066-1068 130661068

Not available

13070

GUIDE KICK SPRING

13070-1063 130701063

Not available

13078

RATCHET

13078-1063 130781063

Not available

59051

GEAR-SPUR

59051-1223 590511223

Not available

59051A

GEAR KICKSTARTER IDLE 26T

59051-1271 590511271

Not available

92015

NUT

92015-1902 920151902

Not available

92022

WASHER 16.3X24X1

92022-1205 920221205

Not available

92022A

WASHER 18.3X22X0.5

92022271 92022271

Not available

92022B

WASHER 16.8X22X0.5

92022315 92022315

Not available

92033

RING-SNAP 18MM

92033029 92033029

Not available

92055

RING-O 10X1.5

92055061 92055061

Not available

92081

SPRING KICK PEDAL

92081020 92081020

Not available

92081A

SPRING RATCHET

92081122 92081122

Not available

92144

SPRING KICKSTARTER

92144-1076 921441076

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Kickstarter Mechanism of your Kawasaki of 1992. Let us know if you have any questions.
