RADIATOR FOR KAWASAKI KDX200

Rear Brake

132

BOLT-FLANGED-SMALL 6X20

132Y0620 132Y0620

Not available

132A

BOLT-FLANGED-SMALL 6X25

132Y0625 132Y0625

Not available

11009

GASKET RESERVOIR TANK CAP

11009-1145 110091145

0,97 €

Unit Price Excl Tax

11009A

GASKET DRAIN BOLT

11009-1152 110091152

Not available

11012

CAP

11012-1084 110121084

Not available

14037

SCREEN WHITE

14037-109-9RZ 140371099RZ

Not available

39061

RADIATOR-ASSY LH

39061-1239 390611239

Not available

39061A

RADIATOR-ASSY RH

39061-1240 390611240

Not available

39062

HOSE-COOLING 5X9X700

39062-1423 390621423

Not available

39062A

HOSE-COOLING RADIATOR RH-PUMP

39062-1579 390621579

Not available

39062B

HOSE-COOLING HEAD-RADIATOR LH

39062-1580 390621580

Not available

39062C

HOSE-COOLING RADIATOR-RADIATOR

39062-1609 390621609

Not available

39062D

HOSE-COOLING 5X9X368.5

39062-1619 390621619

Not available

43078

RESERVOIR

43078-1142 430781142

Not available

49085

CAP-ASSY-PRESSURE P1.1

49085-1070 490851070

Not available

49131

SHROUD-ENGINE LH L.GREEN

49131-5061290 491315061290

Not available

49131A

SHROUD-ENGINE RH L.GREEN

49131-5062290 491315062290

Not available

92002

BOLT RADIATOR DRAIN

92002-1682 920021682

Not available

92015

NUT

92015-1487 920151487

Not available

92027

COLLAR

92027-1183 920271183

Not available

92027A

COLLAR L=13.1

92027251 92027251

Not available

92037

CLAMP COOLING HOSE

92037-1589 920371589

Not available

92037A

CLAMP HOSE

92037-1603 920371603

Not available

92037B

CLAMP

92037-1712 920371712

Not available

92065

GASKET 10.5X16X1

92065058 92065058

Not available

92075

DAMPER

92075209 92075209

Not available

92150

BOLT 6X12

92150-1435 921501435

Not available

92150A

BOLT FLANGED 6X14

92150-1504 921501504

Not available

92150B

BOLT FLANGED 6X25

92150-1507 921501507

Not available

92150C

BOLT 10X10

92150-1867 921501867

Not available

92160

DAMPER

92160-1167 921601167

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

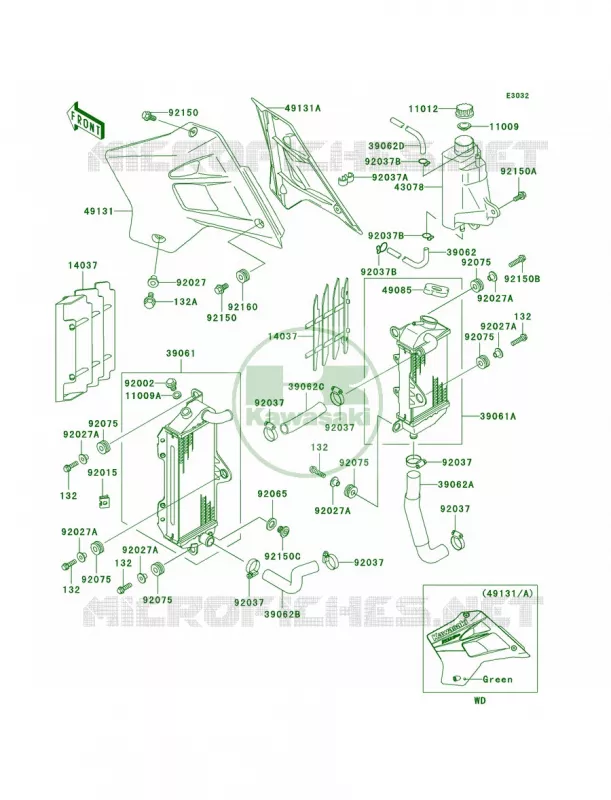

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Radiator of your Kawasaki of 2006. Let us know if you have any questions.
