CARBURETOR PARTS FOR KAWASAKI CONCOURS

223

SCREW-PAN-WS-CROS

223C0416 223C0416

Not available

225

SCREW-PAN-WSP-CROS

225C0418 225C0418

Not available

13091

HOLDER NEEDLE JET

13091-1259 130911259

Not available

16005

TOP-CHAMBER MIXING

16005-1056 160051056

Not available

16007

SEAT-SPRING THROTTLE VALVE

16007-1120 160071120

Not available

16009

NEEDLE-JET N52M

16009-1326 160091326

Not available

16012

CAP-STARTER PLUNGER

16012-1051 160121051

Not available

16012A

CAP-STARTER PLUNGER

16012-1052 160121052

Not available

16014

SCREW-PILOT AIR

16014-1054 160141054

Not available

16016

PLUNGER STARTER

16016-1061 160161061

Not available

16017

JET-NEEDLE

16017-1316 160171316

Not available

16020

CHAMBER-FLOAT RH SIDE

16020-1054 160201054

Not available

16020A

CHAMBER-FLOAT LH SIDE

16020-1055 160201055

Not available

16030

VALVE-FLOAT

16030-1007 160301007

Not available

16031

FLOAT

16031-1056 160311056

Not available

16044

CLAMP FLOAT VALVE

16044007 16044007

Not available

16126

VALVE VACUUM

16126-1160 161261160

Not available

92009

SCREW DRAIN M6X1.0

92009-1487 920091487

Not available

92009A

SCREW DRAIN M6X0.75

92009-1551 920091551

Not available

92022

WASHER PLAIN

92022-1003 920221003

Not available

92043

PIN FLOAT

92043-1207 920431207

Not available

92055

RING-O PILOT ADJUST

92055-1002 920551002

Not available

92055A

RING-O

92055-1053 920551053

Not available

92055B

RING-O FLOAT CHAMBER

92055-1222 920551222

Not available

92063

JET-MAIN #135

92063-1014 920631014

Not available

92063A

JET-MAIN #125

92063-1069 920631069

Not available

92063B

JET-MAIN #120

92063-1072 920631072

Not available

92063C

JET-MAIN #122

92063-1073 920631073

Not available

92063D

JET-MAIN #128

92063-1074 920631074

Not available

92063E

JET-MAIN #130

92063-1075 920631075

Not available

92063F

JET-MAIN #130

92063-1075 920631075

Not available

92063G

JET-MAIN #132

92063-1076 920631076

Not available

92064

JET-PILOT #35

92064-1101 920641101

Not available

92066

PLUG PILOT AIR SCREW 6.9X2

92066-1051 920661051

Not available

92081

SPRING PILOT ADJUST SCREW

92081-1002 920811002

Not available

92081A

SPRING STARTER PLUNGER

92081-1761 920811761

Not available

92081B

SPRING VACUUM VALVE

92081-1925 920811925

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

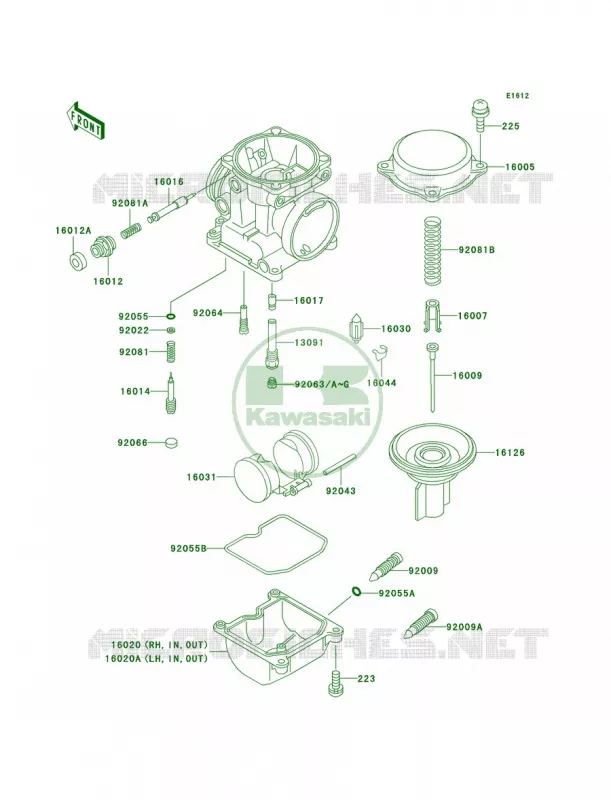

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Carburetor Parts of your Kawasaki Concours GTR of 2000. Let us know if you have any questions.
